IslandOutdoorLLC.comLavaLock® Stick Burner Complete Weld or bolt on Firebox

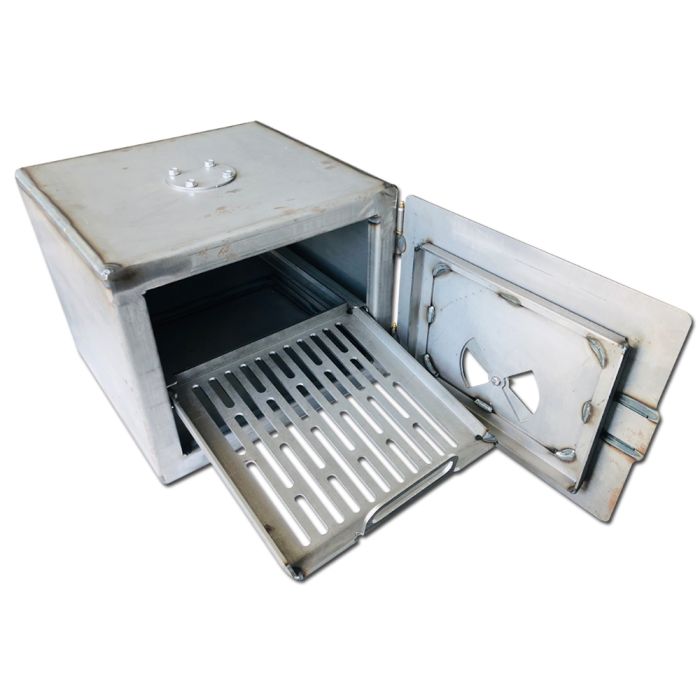

17" wide, 16" deep and 14 " tall, it features a pull out heavy duty grate. This Firebox weighs close to 80 lbs and will NOT disappoint. It is incredibly well built and a real bargain at this price.
Our ready to use Fireboxes are a must for any DIY, Home built or professionally built smoker pit. Constructed in super heavy 10 gauge shell and 3/16" plate steel coal grate. Professionally welded and made to last! The finish & quality is outstanding! Great for any cook chamber that can support the heavy weight of this Fire Box.
Horizontal cylinder cook chambers that are 40" wide x 19" diameter can be supported by this fire box, with a 4" chimney stack at 15" tall. Can be bolted on or welded on. May require minor fab to mate up with some smokers. Paint sold separately. Removable plate warming rack provision at top of box. Comes completely assembled, and includes the door latch which is pre threaded for perfect alignment and simple installation. Ready to use! (see attached PDF bolt pattern for firebox connection) Includes LL40334 latch.
OTHER USES:
Turn a 55 gallon Drum or other tank / drum into to a horizontal offset cooker! This pre-built DIY Firebox is the way to go! No need to roll the steel or spend a lot of time and money learning how to make your own fire box. Our fire boxes are 11 gauge and weigh 60-70 lbs. Complete as pictured; painted, handle, warmer, coal grate and cook grate. Bolt on or weld on avail. This is an intermediate skill part. Not for the novice. Please note drums might need to be notched to have this charcoal fire box mate up properly. MADE in USA.
-
Aubrey King asks
Is it insulated?
-
Hi, No it is not insulated. Thank you and have a great day!
1 people found this answer helpful.
-
-
Peter Palacios asks
Does it come with the latch?
-
Please see the link below for details/description and information on this item. Thanks
https://bbqsmokersupply.com/other/complete-parts-kits/lavalockr-stick-burner-complete-weld-or-bolt-on-firebox.html1 people found this answer helpful.
-
-
Thomas McLain asks
isn't to heavy for the Highlander 80 lbs. seem a little to much.
-
No weight issues as long as it is attached properly. It's a beast and will last a long, long time.
Hope this helps.
Have a great day and stay safe.1 people found this answer helpful.
-
-
Adrian Crawford asks
Hello,
Would you recommend the use of this firebox in the base of a brick smoker construction. I appreciate that it is primarily a weld on or replacement box.
Thanks.
A.-
<p>Hello, </p>
<p>The firebox have a hole on top and it is 11 guage (so its heavy duty)</p>
<p>I would say yes, but please consider that you maihe have to engineer it so it inetgrates properly and also engineer a adapter crossover, etc. </p>
<p>Also, consider the size of the broick smoker to ensure this fire box is big enough. refer to feldon pit calculator for required sizes and what it can support as far as the cook chamber goes. </p>
-
-
Alvin Johnson asks
How well would this box mate up with a OK Joe Highland (bolting on)?
-
<p>This was designed as a replacement fire box is designed for the Oklahoma Joe's Highland.The bolt pattern will line up on MOST Highland smokers made by charbroil. We have not confirmed fitment on a original Ok Joe cooker. However, this firebox is plenty big for the Longhorm, Longhorn 3-in-1 and reverse flows. The bolt patter may just not be exact. Therefore you would have to customize it to fit anything other than the highland. We would consider that intermediate. It can also be welded at a local weld shop. Please also note that the fire boxes are non returnable after modification.</p>
2 people found this answer helpful.
-
-
